Implementation success
in total restorations
Our customers are dentists,
who care about fulfilling your wishes
and those of your patients.
A work protocol that is as minimal as feasible and as essential as required.
The Key Protocol is the key to the successful implementation of full mouth restaurations.
Predictable Success
"Although a lot of things are planned digitally these days,
but it is the implementation into real life
that is the key to success."
Photo Status easily implemented
"We are all under enormous
time pressure at work today,
and if we overlook
important things,
it just increases!"
Guidelines for the Prep and
a Schedule: everything at a glance
"In any case, there is a plan,
preparation is based
on models and
digital representations."
Sign in for more informations.
More information can be found on our website www.bade-zahntechnik.de
or just give me a call. +49 385 77170
Workflow
Based on Dr. Diether Reusch
For the coordinated process in the ZA and ZT teams.
The work protocols are adapted to each customer's working style.
Most Important
Your wishes and those
of your patient
Please list these digitally or analogically.
We are also happy to discuss this in person by phone.
This is the common thread we are guided by,
so that we always keep your wishes in mind.

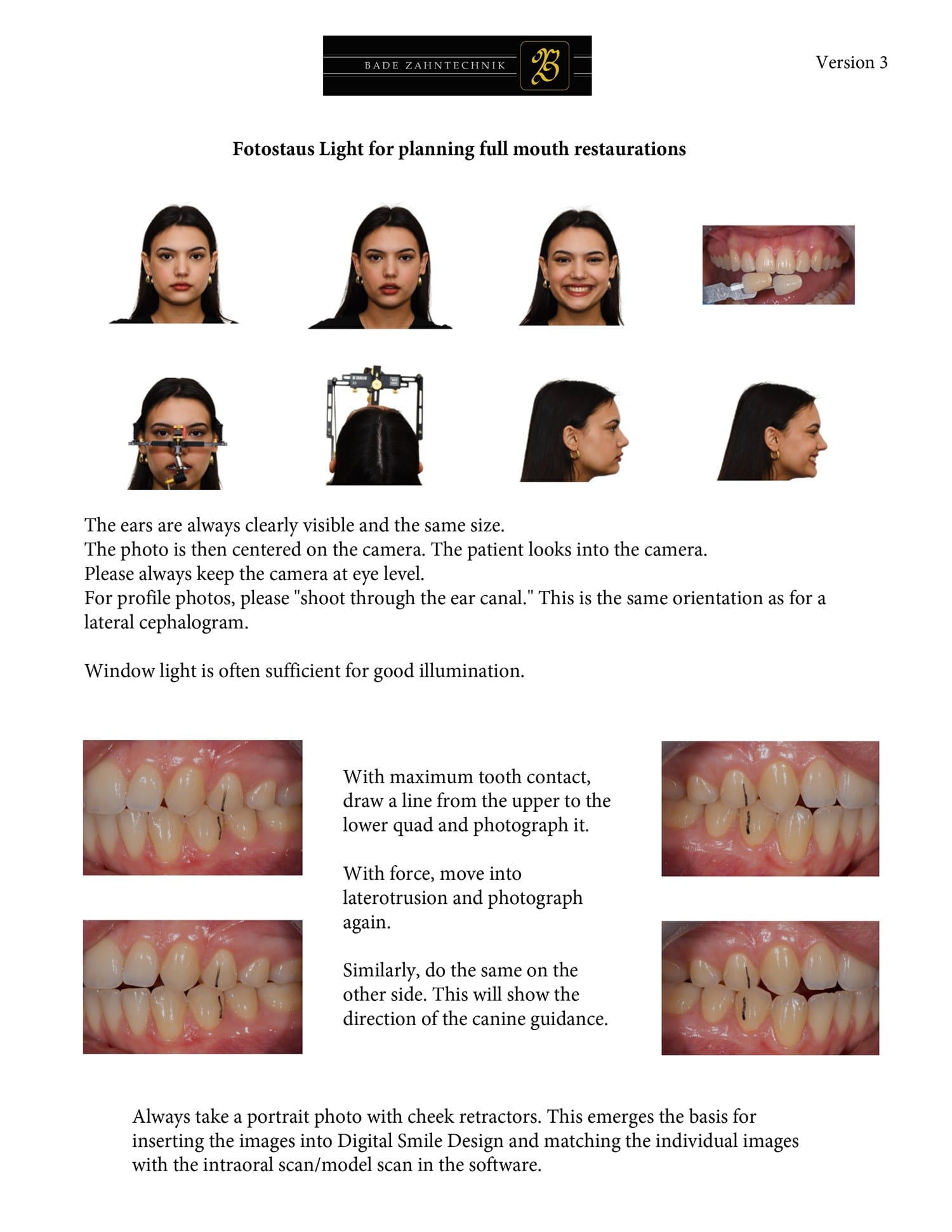

Fotostatus light
As a basis for all major planning and aesthetically relevant treatments.
Please make sure to take an additional portrait photo with cheek retractors,
so that all photos can be measured properly and further processed, for example, in DSD (Digital Smile Design).

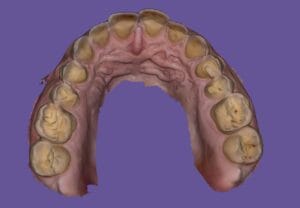

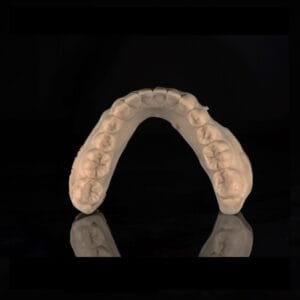

Intraoral scans or in-situ impressions
Please scan the entire palate, the grooves dorsal to the tuber and,
at 12/22, the transition to the attached gingiva.
Digital
facebow
with the Axioprisa from
SAM or analog GB
We process your scans with
Axioprisa and mount the upper jaw
virtually, in a way that is appropriate for your skull.
SAM, Reference, Artex

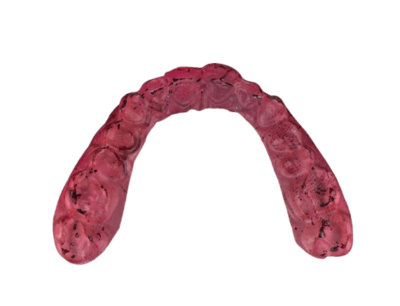

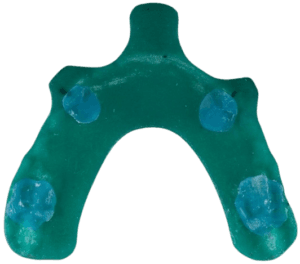

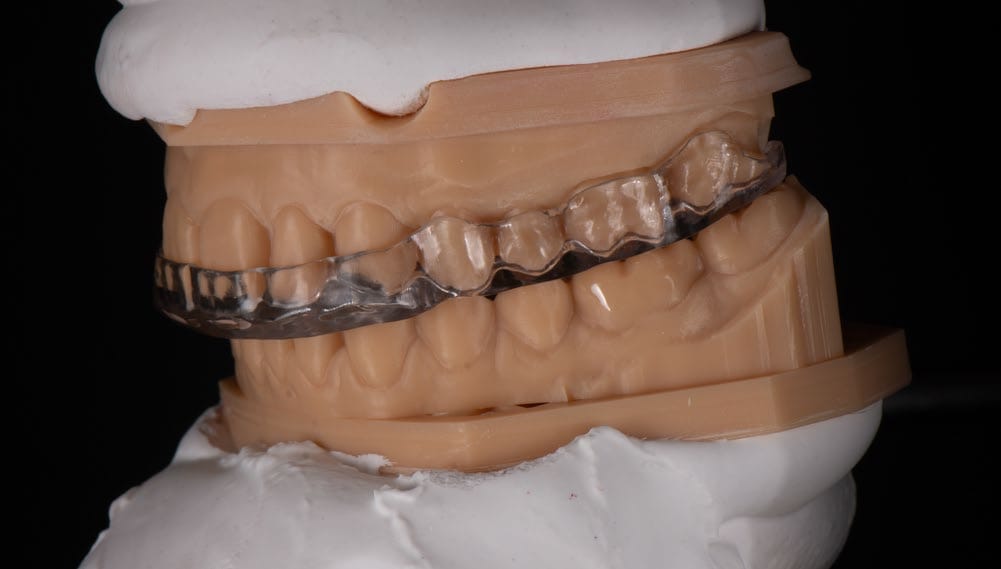

Centric and Bruxchecker
Splint to
simulate and, if necessary,
stabilize the
new bite position.

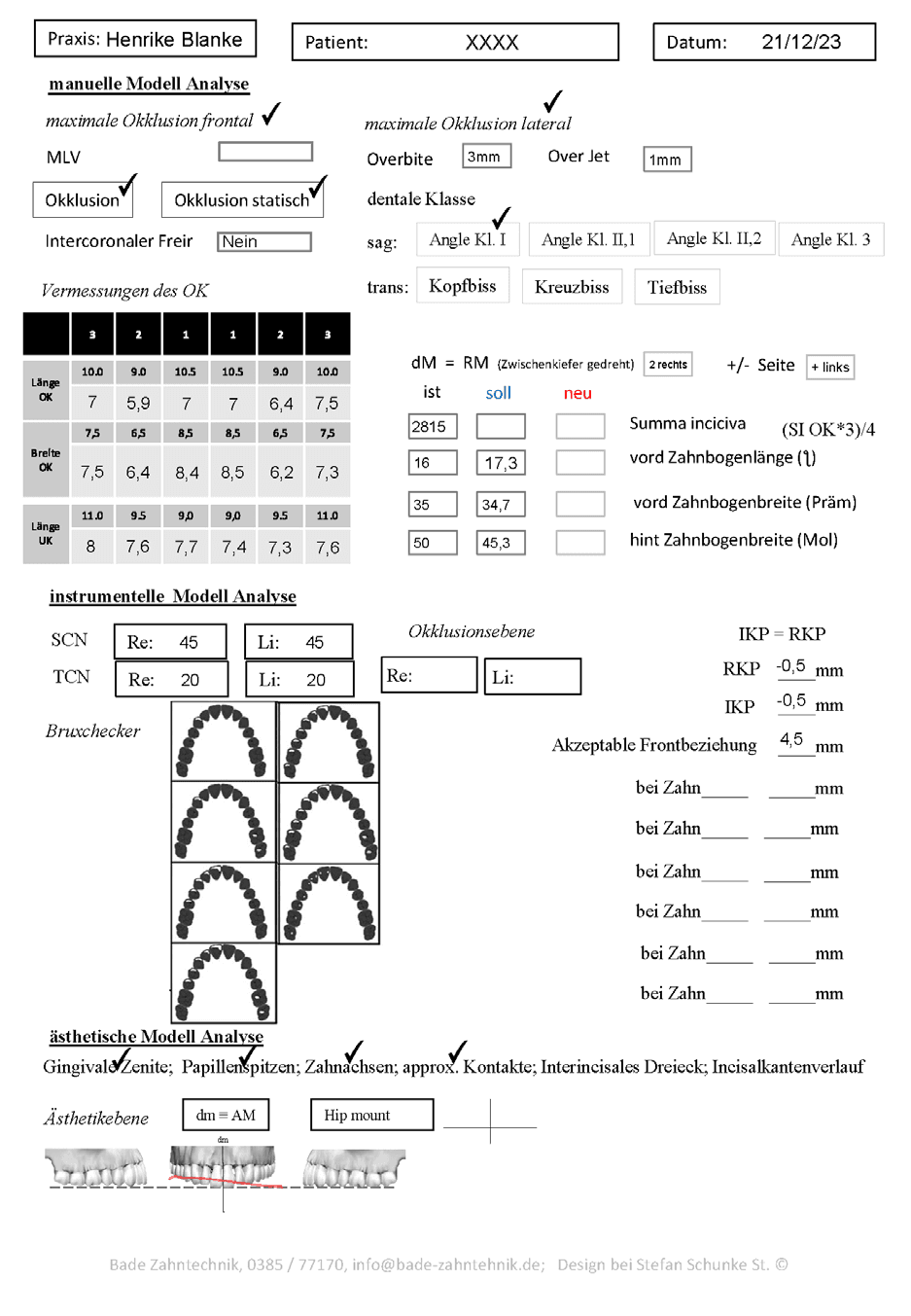

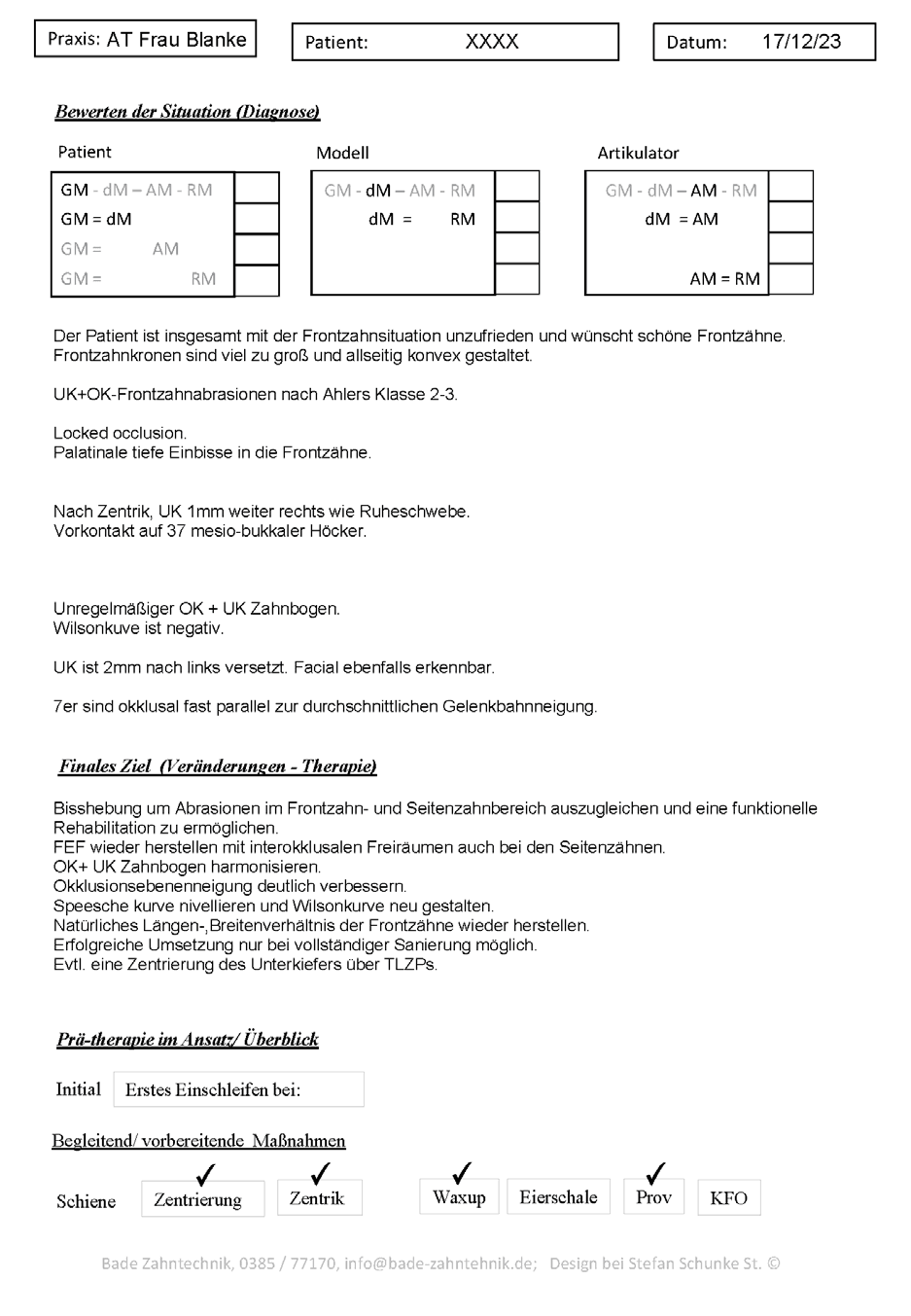

MA and FA
Model analysis and facial analysis

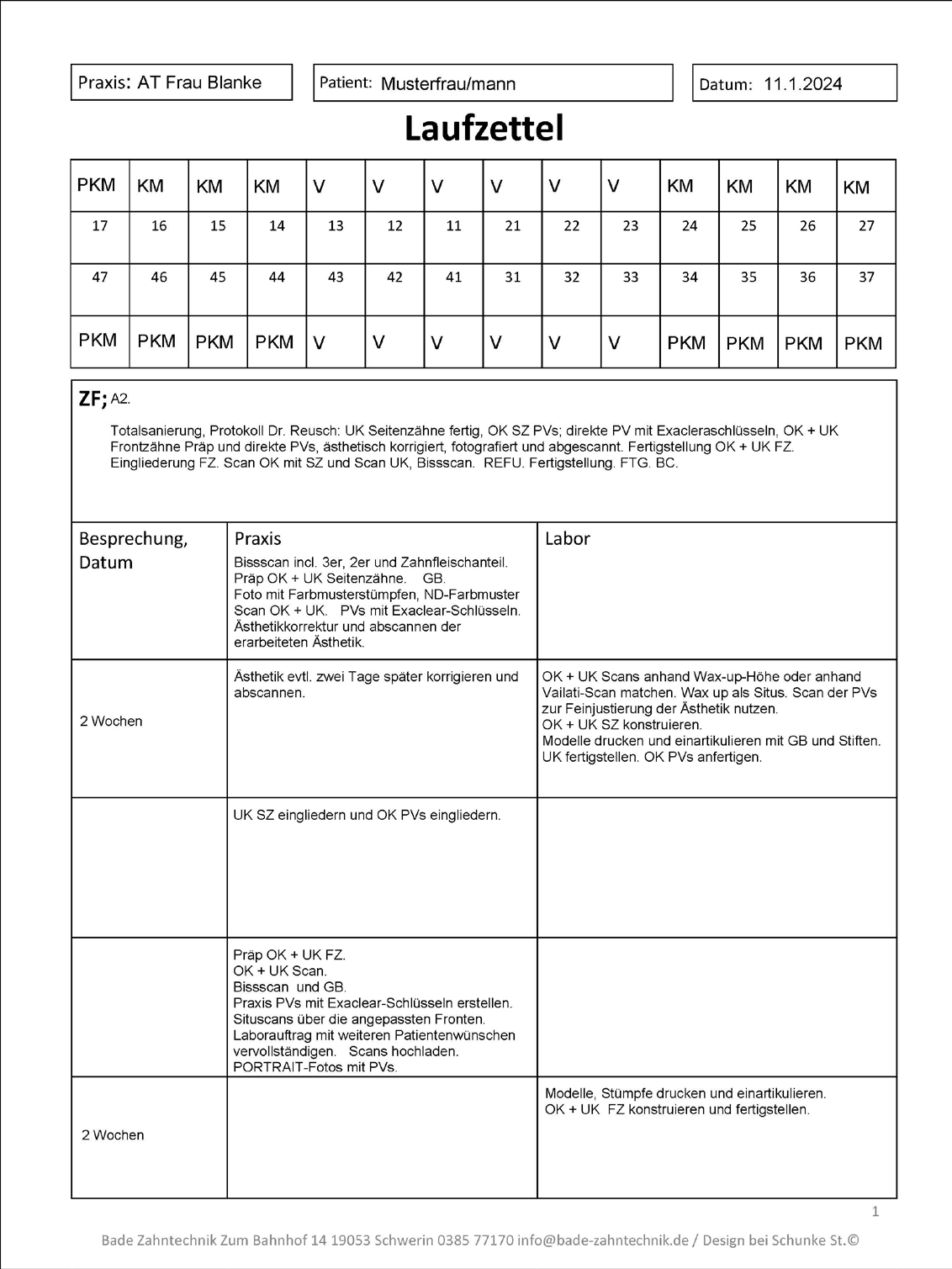

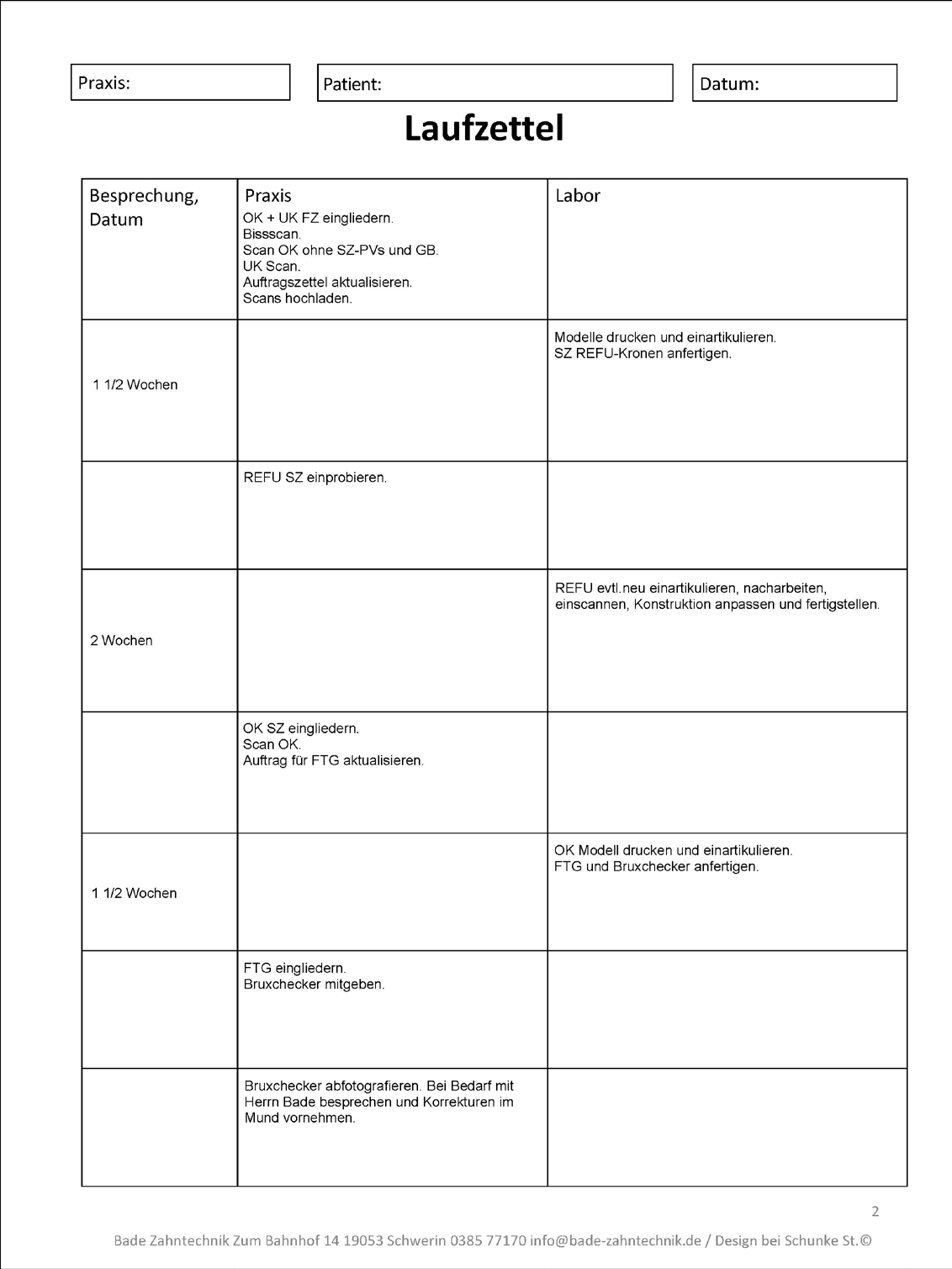

Routing sheet
The routing slip lists all successive work steps, including delivery times.
Individually tailored to your way of working.
This means that you can see at a glance at any time what was planned and what needs to be done.
This means you can start scheduling appointments at any time.
The treatment rooms can be prepared accordingly for each step of the procedure. Even after many months, it's clear at a glance what needs to happen.

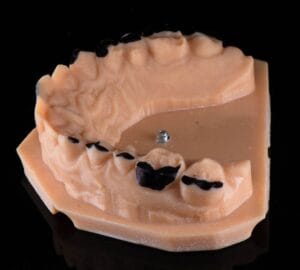

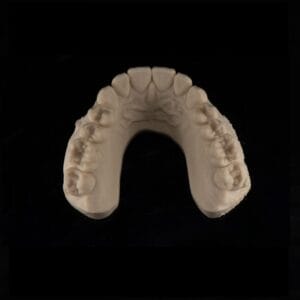

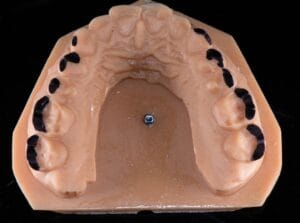

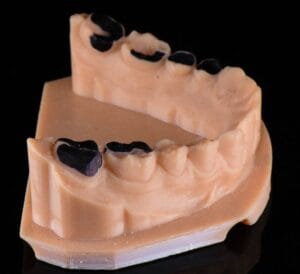

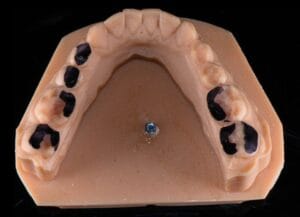

Pre-assignment models
Correcting the position of teeth through targeted removal. Harmonizing the dental arches.
Afterwards, the usual preparation begins again on the pre-contoured areas as far as possible.

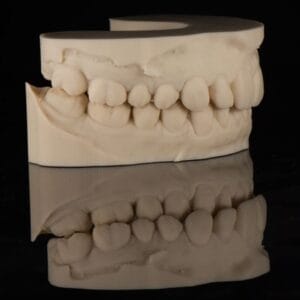

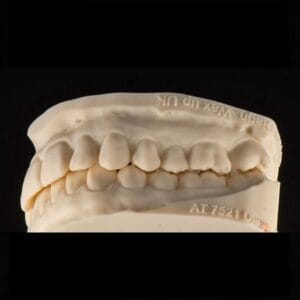

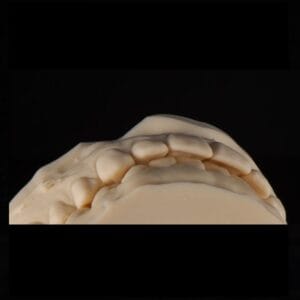

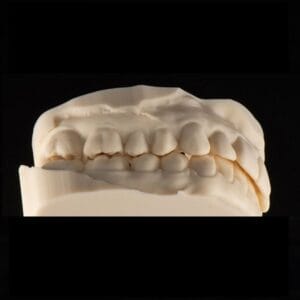

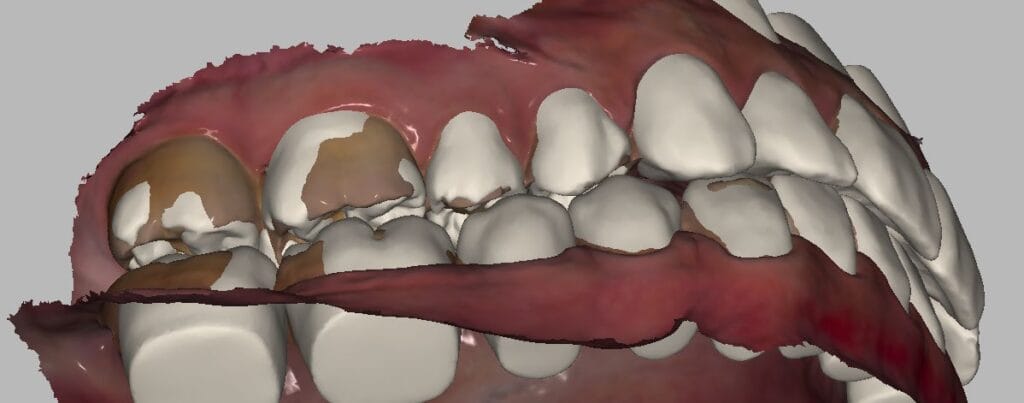

Set-up and mock-up
Newly constructed dental arches are placed over the remaining dentition. This allows the digitally planned situation to be transferred into the mouth without preparation. Now, testing is underway to determine whether the planning works well for the patient.

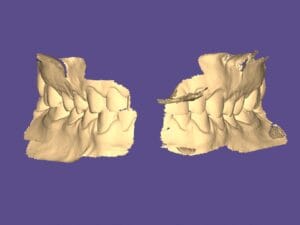

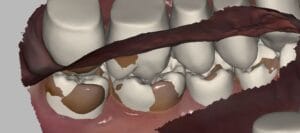

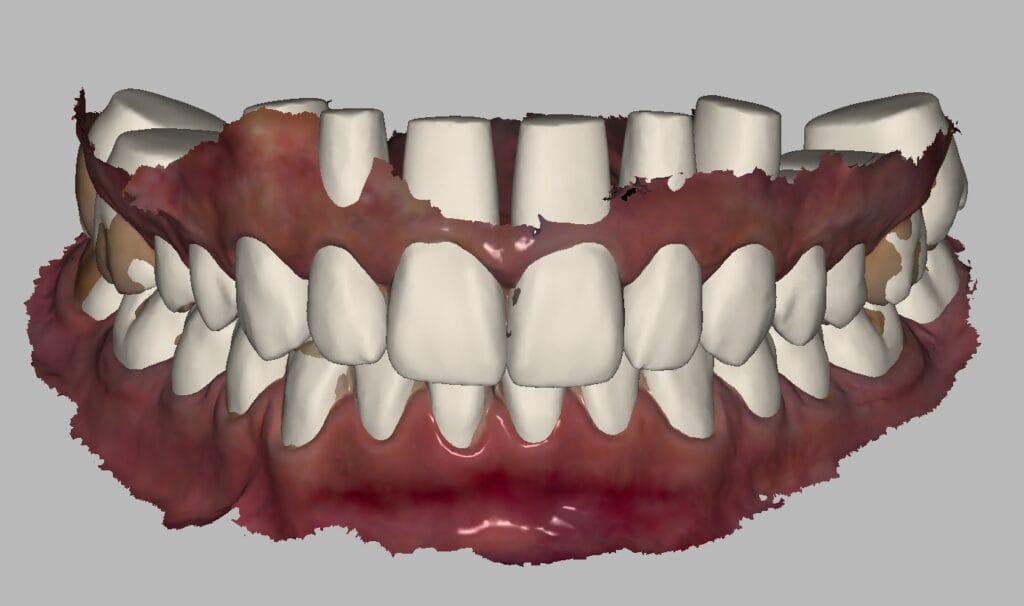

Digital planning
Digital planning is another prep information medium besides precontouring models.
Before and with mockup
First test and a direct hit
Using the mock-up, the position and shape of the teeth can be discussed in detail. The new bite height and facial changes can be experienced. Phonetics are also tested during the discussion. Any desired corrections can be implemented immediately in the mouth by applying or removing them.
At this point, the new, possibly revised situation must be captured in a new photo status.
The same goes for the patient’s cell phone.
The photos help the patient to make an investment decision if this has not yet been made.
The point of no return has not yet been passed.
Up to this point, it is purely a planning exercise and not yet an irreversible treatment.
Fotostatus light
As a basis for all major planning and aesthetically relevant treatments.
Please make sure to take an additional portrait photo with cheek retractors,
so that all photos can be measured properly and further processed, for example, in DSD (Digital Smile Design).
Key protocol completed.
Now, at any given time,
the irreversible implementation of
the approved planning.
Everyone involved is now sure
that the complete renovation will be a success.
TLZP
Therapeutic long-term provisional
The point of no return has now been passed and treatment has begun.
All change requests from the mock-up have been incorporated into this TLZP.
Now we are very close to the final result.
There are many reasons for a test run.
But it is not absolutely necessary.
This depends on the treatment needs.
